Description

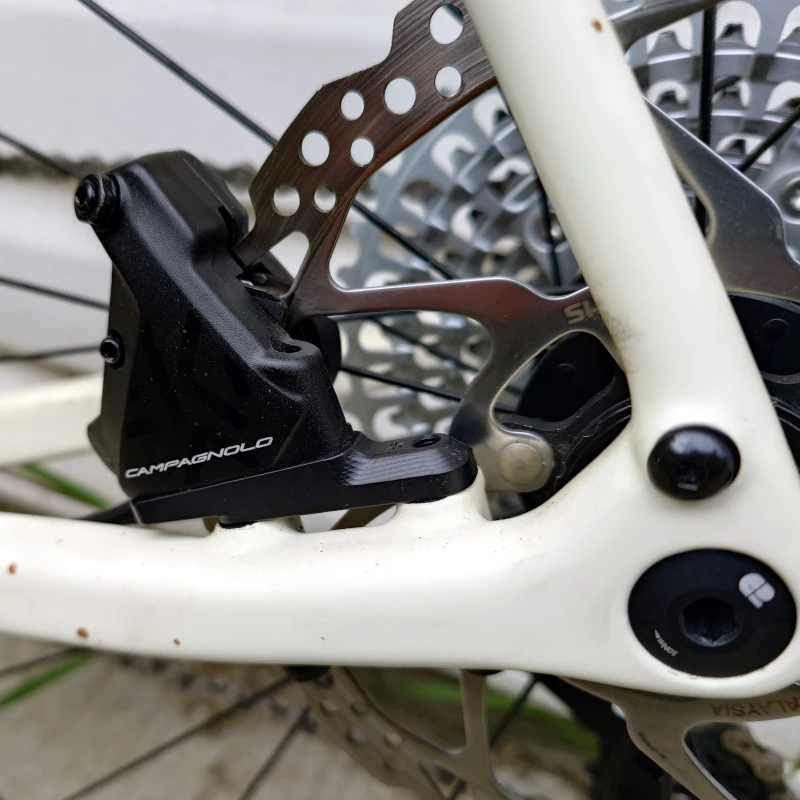

This adapter allows you to use a 180 mm rotor on a standard flat mount frame.
Compatibility:
- This adapter is compatible with flat mount frames that are designed for 140 mm or 160 mm rotors. (34 mm. hole spacing)

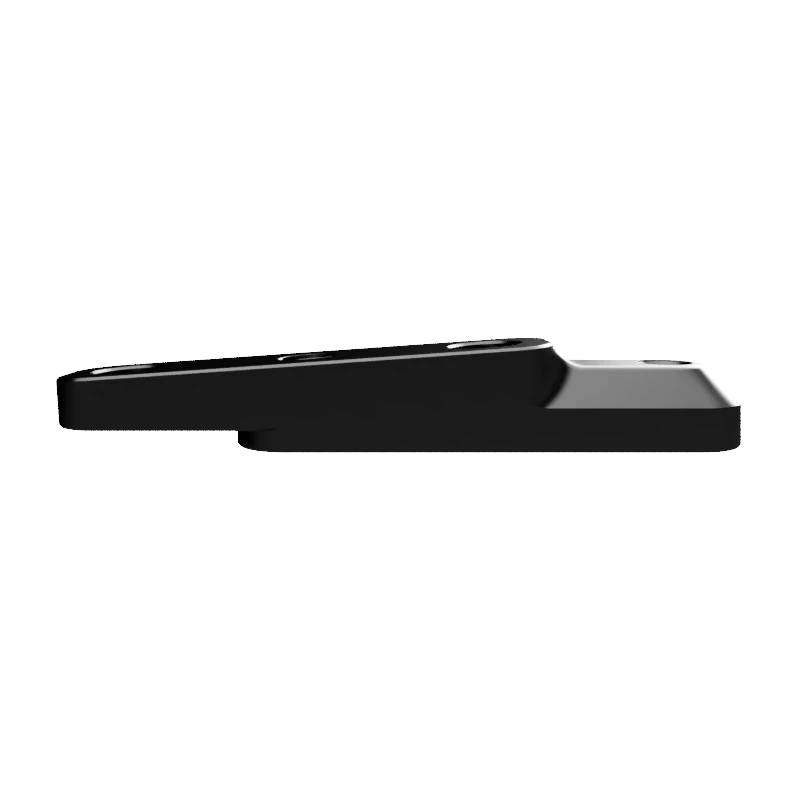

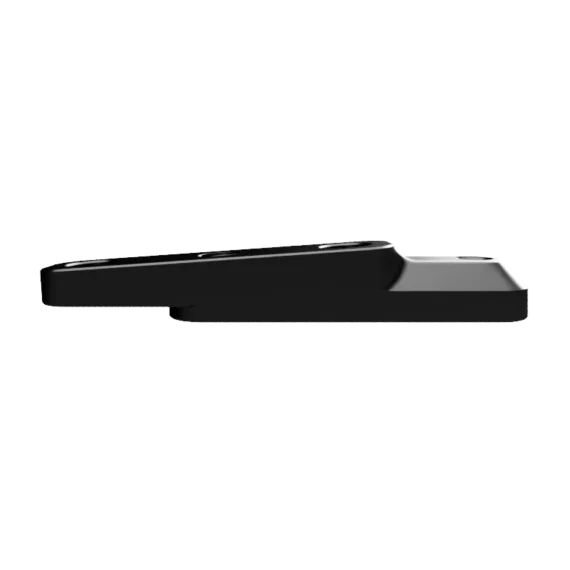

- This adapter keeps the caliper close to the frame for a clean look. The chain stay need to be fairly flat in front of the mounting holes for about 15 mm. If the chain stay curves up or is raised more than 2 mm in that area then this adapter wont work.
- Not all frames have enough clearance for a 180 mm rotor. It is recommended to have 2-3 mm clearance between the rotor and the chain stay.

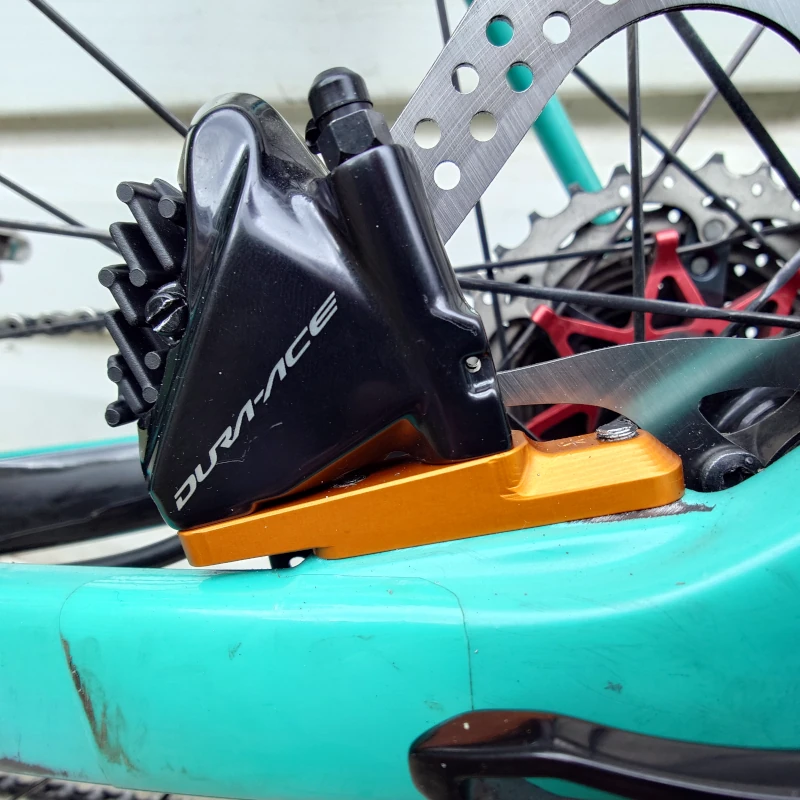

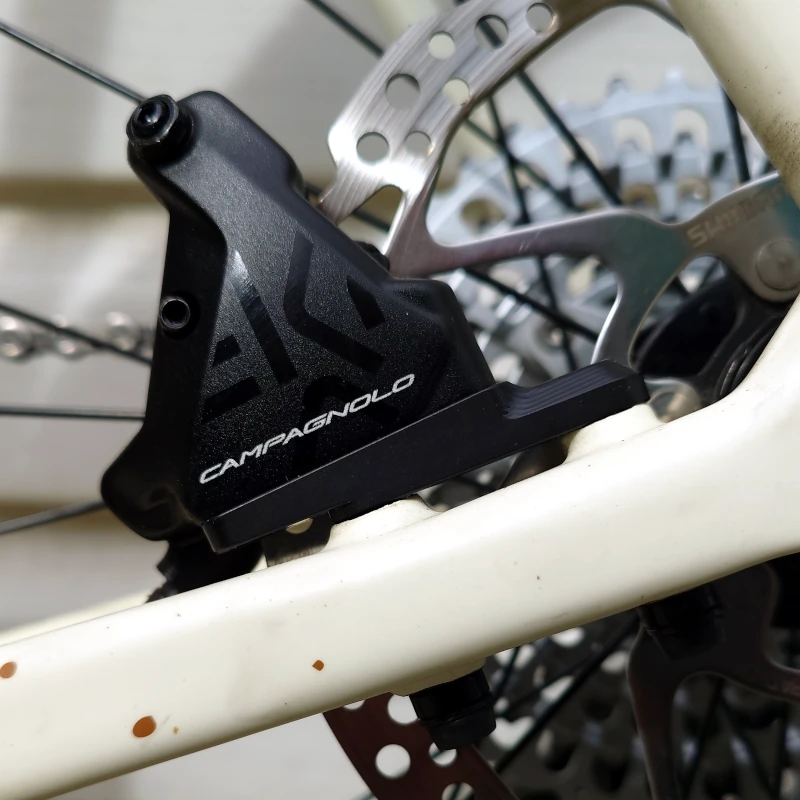

- Tested with Shimano, SRAM and Campagnolo flat mount calipers.
Details:

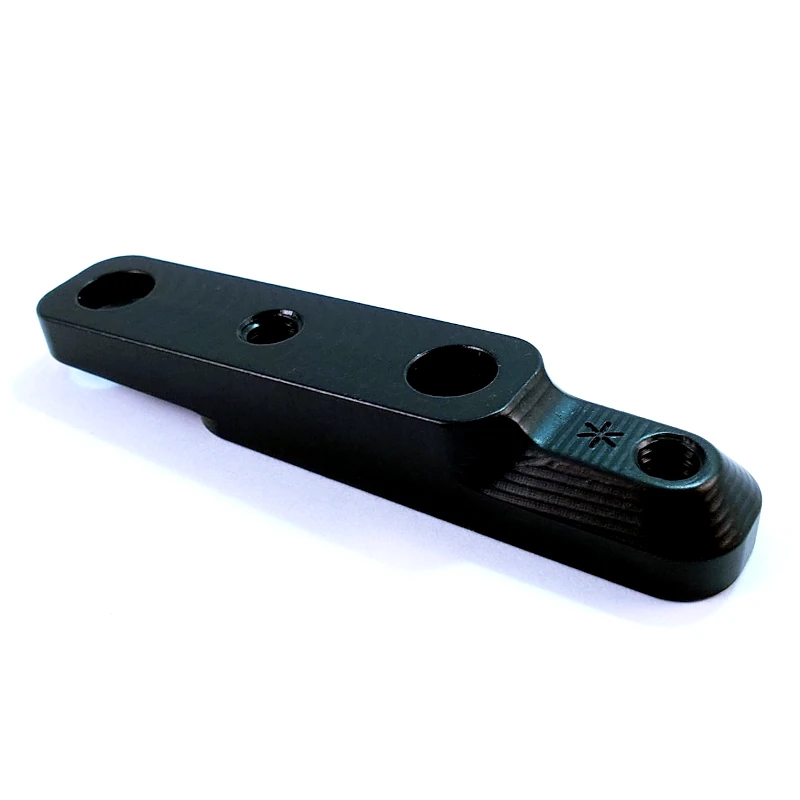

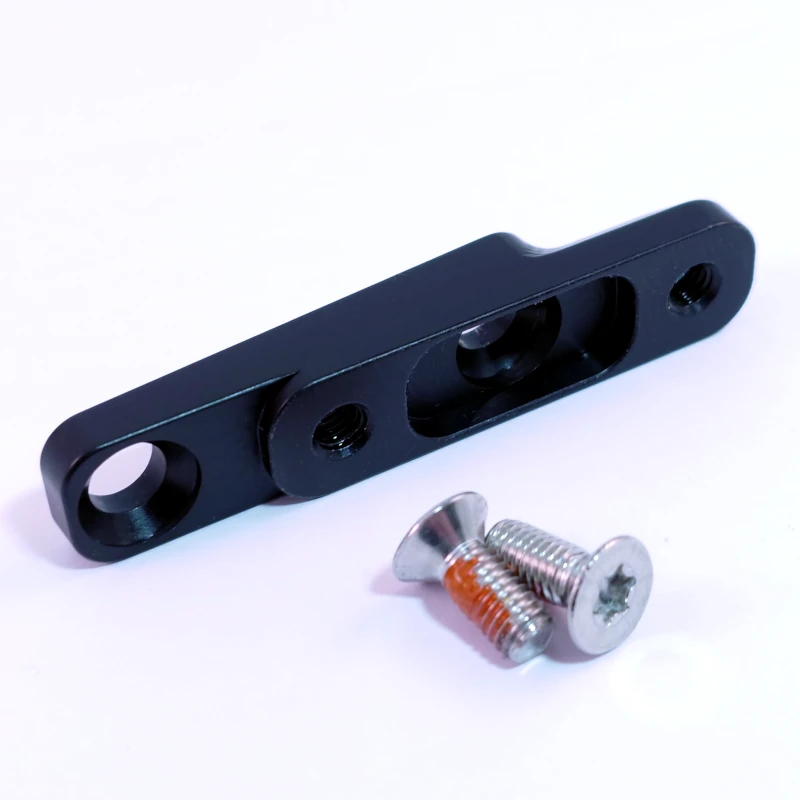

- CNC Machined from 6061-T6 Aluminum, tumbled and anodized.
- Weight: 11 g (without screws)
- Weight: 15 g (with screws)
- Made in Canada
